Vacuum Pump

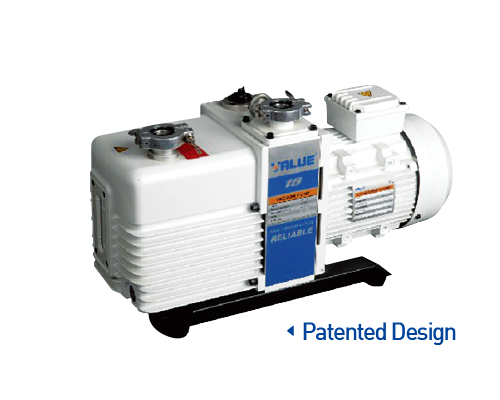

VRD Series
- Tow-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor (such as water vapor) to be exhausted out of pump in different processes.
- Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
- Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
- Less components are used, easy to maintain and repair.
Specifications
| Model | VRD-4 | VRD-8 | VRD-12 | VRD-16 | VRD-24 | VRD-30 | VRD-48 | VRD-65 | |
|---|---|---|---|---|---|---|---|---|---|
| Displacement speed m3 /h (L/s) |
50Hz | 4 (1.1) | 8 (2.2) | 12 (3.2) | 16 (4.4) | 24 (6.6) | 30 (8.3) | 48 (13.3) | 65 (18) |
| 60Hz | 4.8 (1.3) | 9.6 (2.6) | 14 (3.8) | 19.2 (5.2) | 28.8 (7.9) | 36 (9.9) | 57.6 (16) | 78 (21.6) | |
| Ultimate partial pressure gas ballast close (Pa) | 5x10-2 | 5x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | |
| Ultimate total pressure gas ballast close (Pa) | 5x10-1 | 5x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | |
| Ultimate total pressure gas ballast open (Pa) | 3 | 3 | 8x10-1 | 8x10-1 | 8x10-1 | 8x10-1 | 8x10-1 | 8x10-1 | |
| Power supply | Single / Three Phase |
Single / Three Phase |
Single Phase | Single / Three Phase |
Single / Three Phase |
Single / Three Phase |
Three-Phase | Three-Phase | |
| Power rating (kW) | 0.4/0.37 | 0.4/0.37 | 0.55 | 0.75/0.55 | 1.1/0.75 | 1.1 | 1.5 | 2.2 | |
| Intake and exhaust DN (mm) | KF16/25 | KF16/25 | KF25 | KF25 | KF25/40 | KF25/40 | KF40 | KF40 | |
| Oil capacity (L) | 0.6~1.0 | 0.6~1.0 | 0.6~1.0 | 9.0~1.5 | 1.3~2.0 | 1.3~2.0 | 3.3~4.5 | 3.3~4.5 | |
| Motor speed (rpm) | 50hHz | 1440 | 1440 | 2100 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Motor speed (rpm) | 60hHz | 1720 | 1720 | 2100 | 1720 | 1720 | 1720 | 1720 | 1720 |
| Ambient temperature (°C) | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | |
| Noise level (dB) | ≤56 | ≤56 | ≤57 | ≤58 | ≤58 | ≤58 | ≤62 | ≤62 | |
| Weight (Kg) | 19 | 21 | 16 | 30 | 35 | 43 | 62 | 65 | |

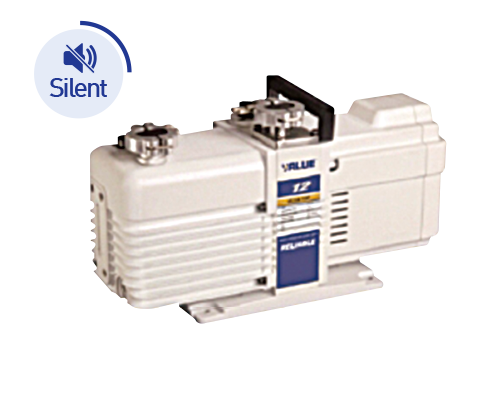

VDC Series
- Low noise level allows for an installation close to the work space
- Anti-corrosion design (optional)
- Low power consumption for cost saving
- Low and easy maintenance
- Easy installation and footprint
Specifications
| Model | VDC-4 | VDC-6 | VDC-8 | VDC-12 | |
|---|---|---|---|---|---|
| Displacement speed m3 /h (L/s) |
50Hz/60Hz | 4 (1.1) | 6 (1.6) | 8 (2.2) | 11 (3.0) |
| Ultimate partial pressure gas ballast close (Pa) | 5x10-2 | 5x10-2 | 5x10-2 | 5x10-2 | |
| Ultimate total pressure gas ballast close (Pa) | 5x10-1 | 5x10-1 | 5x10-1 | 5x10-1 | |
| Ultimate total pressure gas ballast open (Pa) | 10 | 10 | 10 | 10 | |
| Power supply | Single-ph 220V 50-60Hz |
Single-ph 220V 50-60Hz |
Single-ph 220V 50-60Hz |
Single-ph 220V 50-60Hz |
|
| Power rating (kW) | 0.37 | 0.37 | 0.37 | 0.37 | |
| Intake and exhaust DN (mm) | KF16/25 | KF16/25 | KF16/25 | KF16/25 | |
| Oil capacity (L) | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | |
| Ambient temperature (°C) | 5-40℃ | 5-40℃ | 5-40℃ | 5-40℃ | |
| Noise level (dB) | ≤50 | ≤50 | ≤50 | ≤50 | |
| Weight (Kg) | 14.5 | 14.5 | 15.5 | 15.5 | |
